Sheets, Plates & Ribbons
Sheets, plates and ribbons
We offer high-quality sheets, plates and ribbons made of molybdenum, tungsten, tantalum, rhenium and their alloys and can also deliver large quantities on time.
Our products are used in various industries, such as medical technology, furnace construction, the chemical industry and the lighting industry – wherever the highest material requirements and precision are needed.
Detailed information on the material properties, dimensions and tolerances can be found in the table below or in the corresponding material data sheets:

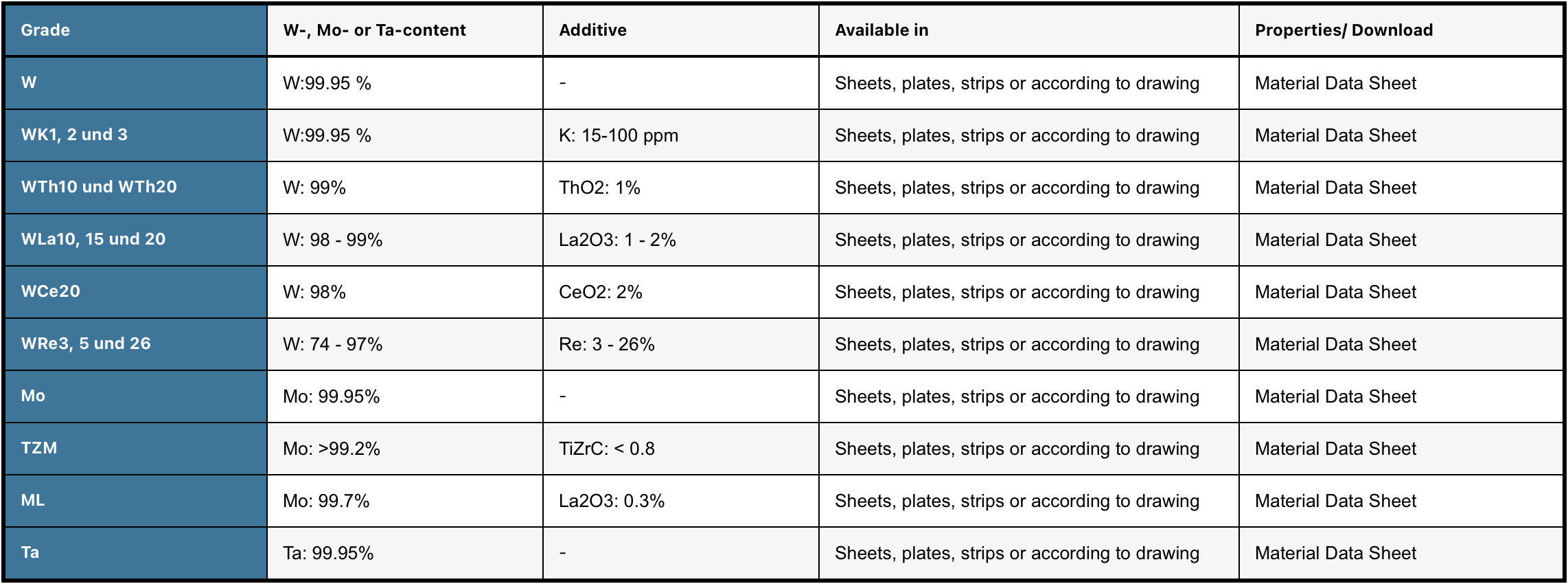

Grade | W-, Mo- or Ta-content | Additive | Available in | Properties/ Download |
W | W:99.95% | - | Sheets, plates, strips or according to drawing | |
WK1, 2 und 3 | W:99.95% | K: 15-100 ppm | Sheets, plates, strips or according to drawing | |
WTh10 und WTh20 | W: 99% | ThO2: 1% | Sheets, plates, strips or according to drawing | |
WLa10, 15 und 20 | W: 98 - 99% | La2O3: 1 - 2% | Sheets, plates, strips or according to drawing | |
WCe20 | W: 98% | CeO2: 2% | Sheets, plates, strips or according to drawing | |
WRe3, 5 und 26 | W: 74 - 97% | Re: 3 - 26% | Sheets, plates, strips or according to drawing | |
Mo | Mo: 99.95% | - | Sheets, plates, strips or according to drawing | |
TZM | Mo: >99.2% | TiZrC: < 0.8 | Sheets, plates, strips or according to drawing | |
MoLa | Mo: 99.3 - 99,97% | La2O3: 0.03 - 0,7% | Sheets, plates, strips or according to drawing | |
Ta | Ta: 99.95% | - | Sheets, plates, strips or according to drawing |
Inquiries / Orders
Do you have any questions or would you like to place an order?
Feel free to contact us!
E-Mail: [email protected]
Phone: +49 (0) 8131 3164192
